HELIX DIRECTOR Display Remote Control DSP Audiotec Fischer
Rp5.950.000
Beli via WhatsAppDeskripsi
DIRECTOR – Display Remote Control
Everything under control!
With the new remote control DIRECTOR, you lead from the front!

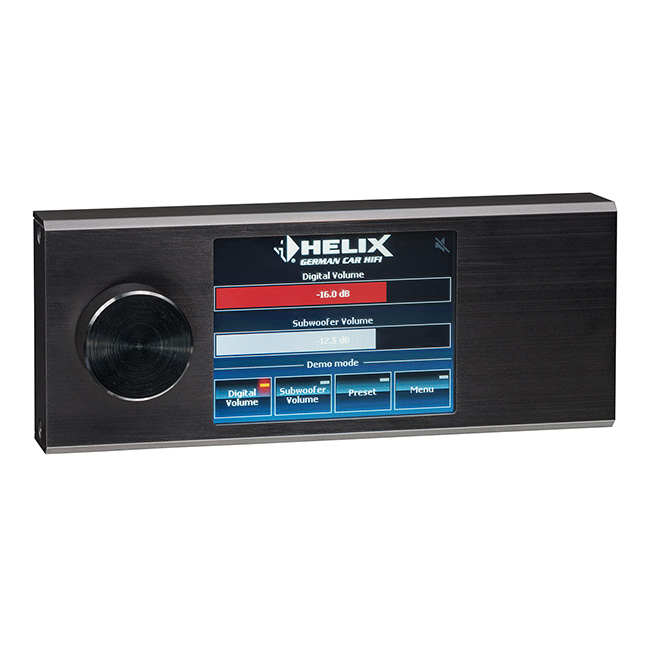

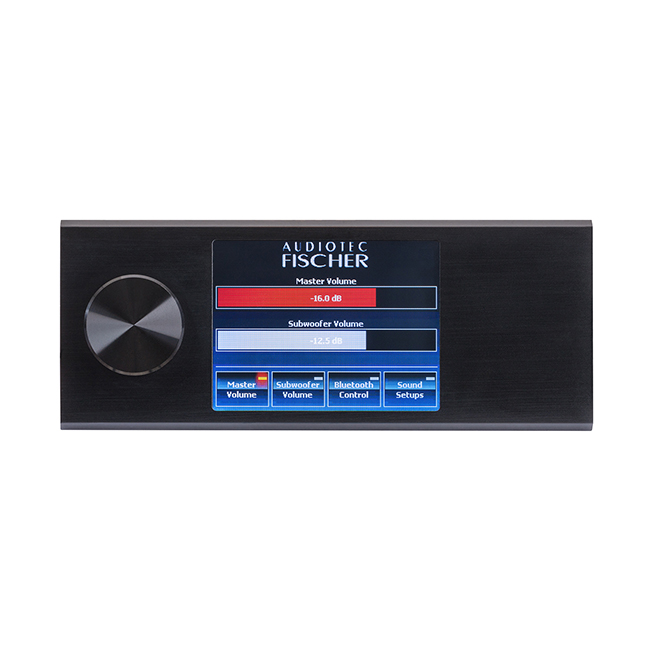

The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example:
- Source selection
- Volume control of all sources
- Volume control of the subwoofer
- Control and configuration of the HEC BT module
- Switching between sound setups
Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR – a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk.

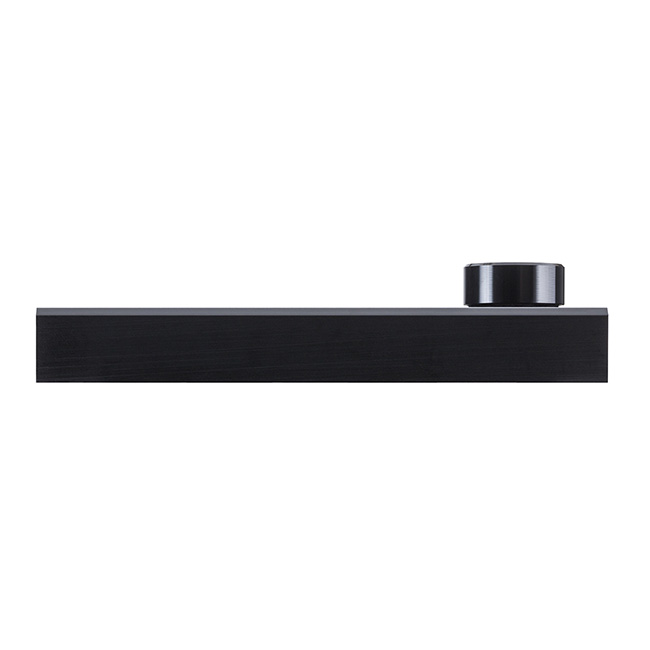

The high-resolution, full colour touchscreen display is housed in what was solid block of aluminum.
The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.
Features
- 2.8“ / 7 cm touchscreen display and powerful ARM processor
- Easy handling of the main functions
- Volume control of all sources
- Volume control of the subwoofer
- Source selection
- Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
- Switching between sound setups
- Memory locations for 20 additional sound setups (only devices without ACO platform)
- Automatic dimming function of the display
- Display rotation adjustable to 180°
- Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
- Exclusive solid aluminum housing
- 17’ / 5.2 m connection cable included
Technical data
| Dimensions (H x W x D) | 53.50 x 135 x 18 mm; 2.07 x 5.32 x 0.71″ |
Compatibility
| DIRECTOR for SCP
|
DIRECTOR for Control Input
|
||
| BRAX | DSP | X | |
| HELIX | DSP ULTRA S | X | |
| DSP ULTRA | X | ||
| DSP PRO MK3 | X | ||
| DSP PRO MK1 / MK2 | X | ||
| DSP.3S | X | ||
| DSP.3 | X | ||
| DSP.2 | X | ||
| DSP MINI MK2 | X | ||
| DSP MINI | X | ||
| DSP | X | ||
| P SIX DSP ULTIMATE (not in 24V applications) |
X | ||
| P SIX DSP MK1 / MK2 | X | ||
| V EIGHTEEN DSP | X | ||
| V TWELVE DSP MK2 | X | ||
| V TWELVE DSP | X | ||
| V EIGHT DSP MK1 / MK2 | X | ||
| M SIX DSP | X | ||
| M FOUR DSP | X | ||
| MATCH |
DSP | X | |
| UP 10DSP | X | ||
| UP 10DSP – 24V Edition | X | ||
| UP 8BMW | X | ||
| UP 8DSP | X | ||
| UP 7BMW | X | ||
| UP 7DSP | X | ||
| UP 6DSP | X | ||
| M 5.4DSP | X | ||
| M 5DSP MK1 / MK2 | X | ||
| PP 86DSP MK2 | X | ||
| PP 86DSP | X | ||
| PP 82DSP | X | ||
| PP 62DSP | X | ||
| PP 52DSP | X |
Notes:
- The DIRECTOR cannot be combined with another control unit.
- The DIRECTOR for Control Input can also be connected to newer devices with SCP input using an SCP-to-Control Input adaptor (Part No. M141313). If the adaptor is not included with your DSP device, it is available separately from your authorized dealer.
Scope of delivery
1 x Remote control DIRECTOR
1 x Connection cable for Control Input, 17′ / 5.2 m length
1 x Instruction manual
