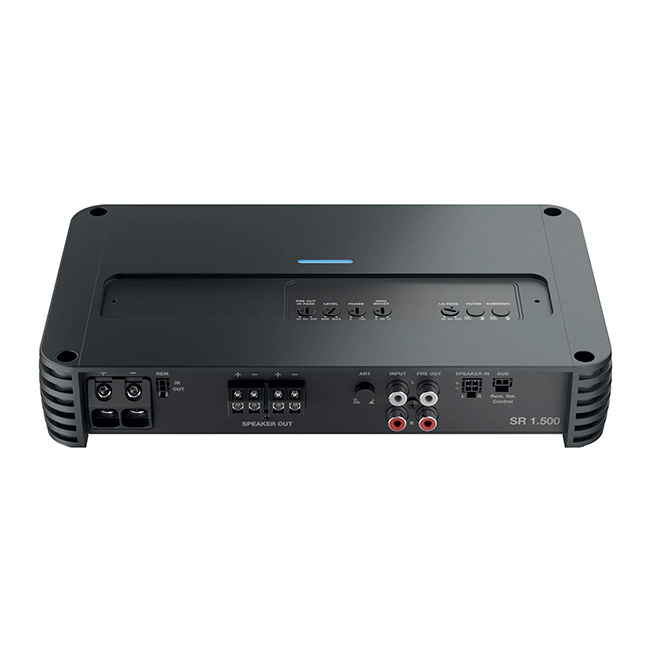

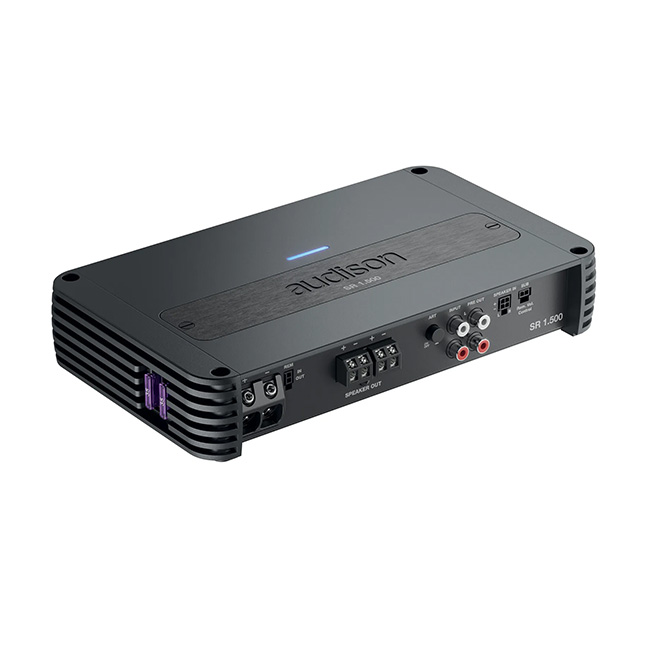

Power Monoblock Amplifier Audison SR 1.500
Rp12.100.605
Beli via WhatsAppJasa instalasi mulai: Rp 350.000
Description
Audison SR 1.500 adalah amplifier mono stabil 1 ohm dengan crossover internal yang memiliki dimensi ringkas dan daya RMS yang mengesankan sebesar 1000 W.
Amplifier | 1000 W total power | 1 x 1000 W @ 1ohm | D-class
Amplifier Tech Data
| Channels | 1 |
| Class | D-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 2 x 35A |
| Operating power supply voltage | 6.5 ÷17 VDC |
| Idling current | 0.8 A |
| Idling current when off | 0.02 mA |
| Consumption @ 14.4 VDC, 1Ω, Max Musical Power | 40 A |
| Remote OUT | 6.5 ÷ 15 VDC (150 mA) |
| Remote IN | 6.5 ÷ 15 VDC (1 mA) |
| ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 ÷ 7 VDC |
Amplifier Stage
| Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power | 0.1 % |
| Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz |
| S/N ratio A | (A weighted @ 1 V): 100 dBA |
| Damping factor A | > 300 |
| Input sensitivity Pre-In | 0.2 ÷ 5 VRMS |
| Input sensitivity Speaker-In | 0.8 ÷ 20 VRMS |
| Total Power RMS | 1000 W |
| Minimum load impedance | 1Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 1Ch 500 W x 1 (4Ω)
1Ch 800 W x 1 (2Ω) 1Ch 1000 W x 1 (1Ω) |
| Adjustable Crossover | No |
