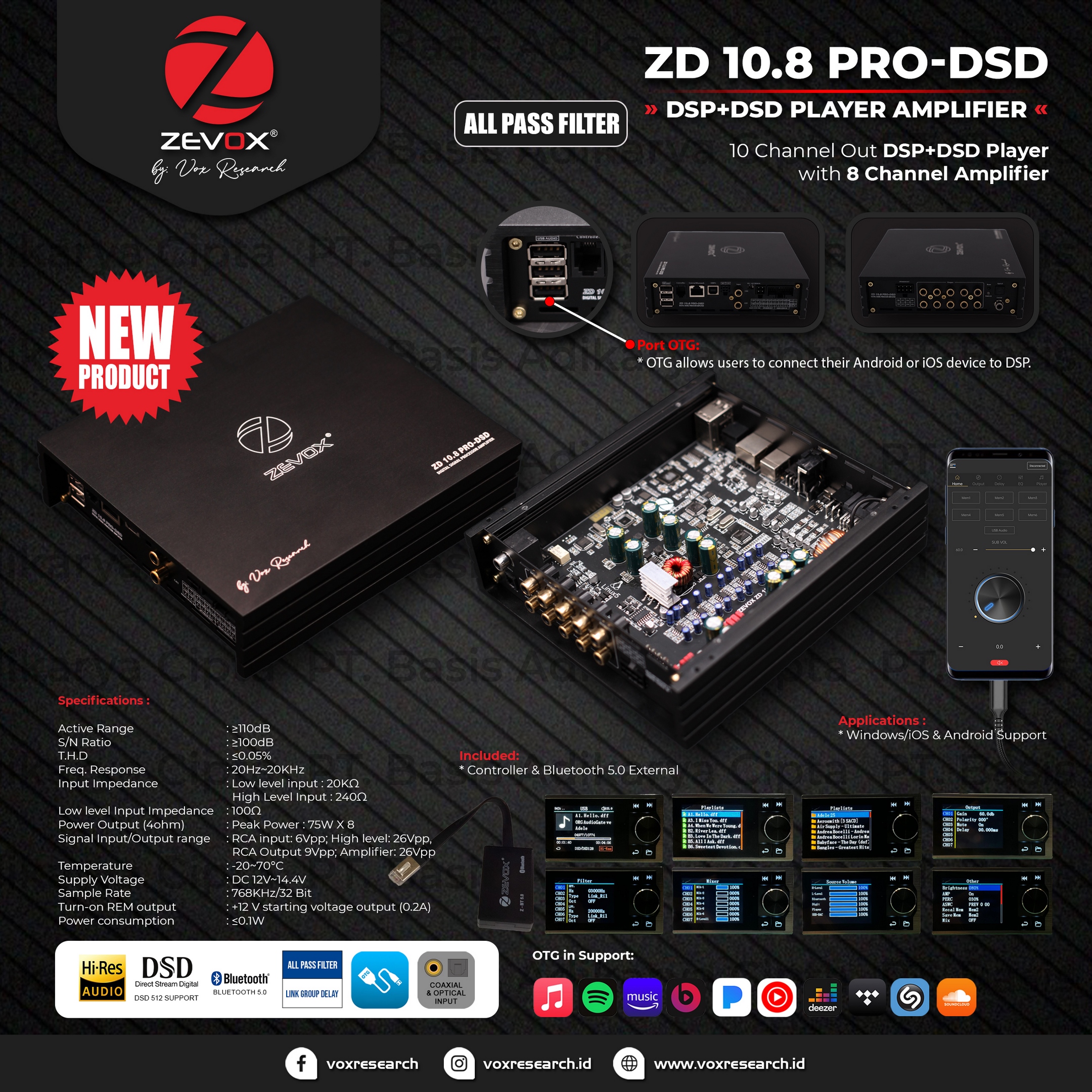

ZEVOX ZP10.8 PRO-DSD MKII AMP DSP Processor 10CH Amplifier 8CH with DSD Player

Deskripsi

ZEVOX ZP10.8 PRO-DSD MKII AMP DSP Processor 10CH Amplifier 8CH with DSD Player

ZEVOX – ZD 10.8 PRO-DSD
Specifications :

Active Range : ≥110dB
S/N Ratio : ≥100dB
T.H.D : ≤0.05%
Freq. Response : 20Hz~20KHz
Input Impedance : Low level input : 20KΩ, High Level Input : 240Ω
Low level Input Impedance : 100Ω
Power Output (4ohm) : Peak Power : 75W X 8
Signal Input/Output range : RCA input: 6Vpp; High level: 26Vpp, RCA Output 9Vpp; Amplifier: 26Vpp
Temperature : -20~70°C
Supply Voltage : DC 12V~14.4V
Sample Rate : 768KHz/32 Bit
Turn-on REM output : +12 V starting voltage output (0.2A)
Power consumption : ≤0.1W
