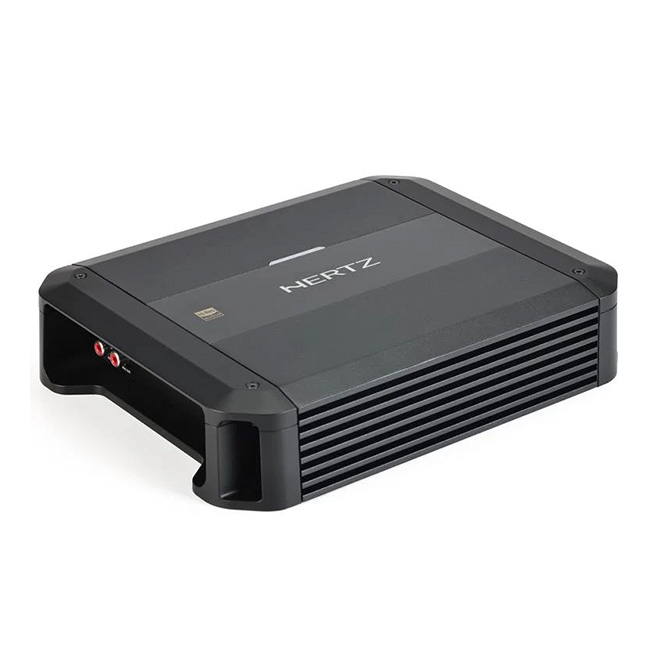

Power Monoblock Amplifier Hertz DIECI DP 2.200
Rp3.575.000
Beli via WhatsAppJasa instalasi mulai: Rp 500.000
Description
Amplifier Hertz DIECI POWER DP 2.200 adalah pembangkit tenaga audio yang dirancang untuk meningkatkan pengalaman audio mobil Anda ke tingkat yang belum pernah terjadi sebelumnya. Dengan Sertifikasi Audio Resolusi Tinggi, amplifier ini menghasilkan respons frekuensi yang mengesankan, mulai dari 10 Hz hingga 45 kHz, memastikan setiap nuansa musik Anda direproduksi dengan presisi sejernih kristal.
- High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz – 45 kHz.
- Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ω stable power outputs in a small and compact design.

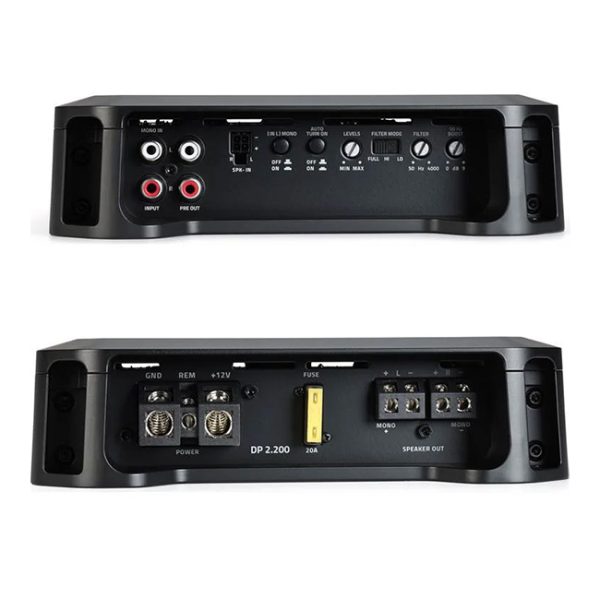

- Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
- Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
- High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
- Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
- Automatic Remote Turn-On/Off: driven by OEM radio speak
- Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
General Specs
| Channels | 2 – 1 |
| Amp class | AB |
| POWER SUPPLY | |
| Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (2 x 20 A) |
| Operating power supply voltage | 6.5 ÷ 16.5 VDC |
| Idling current | 0.65 A |
| Standby current draw | 5 uA |
| Consumption, MIN load impedance (Max Musical Power) | 15 A |
| Remote IN | 4 ÷ 15 VDC (1.5 mA) |
| ART – Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
| Efficiency | 60% |
| AMPLIFIER STAGE | |
| Distortion – THD @ 100 Hz, 70% Rated Power | 0.01% |
| Damping factor @ 1 kHz, 1W | 130 |
| Bandwidth @ -3 dB | 10Hz ÷ 45kHz |
| S/N ratio (A-weighted @ 1 V Input) | 100 dBA |
| Minimum load impedance | |
| @ 2 Ch: | 2 Ω |
| @ 1 Ch: | 4 Ω |
| Adjustable Crossovers | yes |
Output Power
| Output power (RMS) @ 1% THD: | |
| 2Ch @ 4Ω | 80 W x 2 |
| 2Ch @ 2Ω | 110 W x 2 |
| 1Ch @ 4Ω | 220 W x 1 |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 2Ch @ 4Ω | 95 W x 2 |
| 2Ch @ 2Ω | 130 W x 2 |
| 1Ch @ 4Ω | 260 W x 1 |
| Total Power | 260 W |
Additional information
| Weight | 4 kg |
|---|
