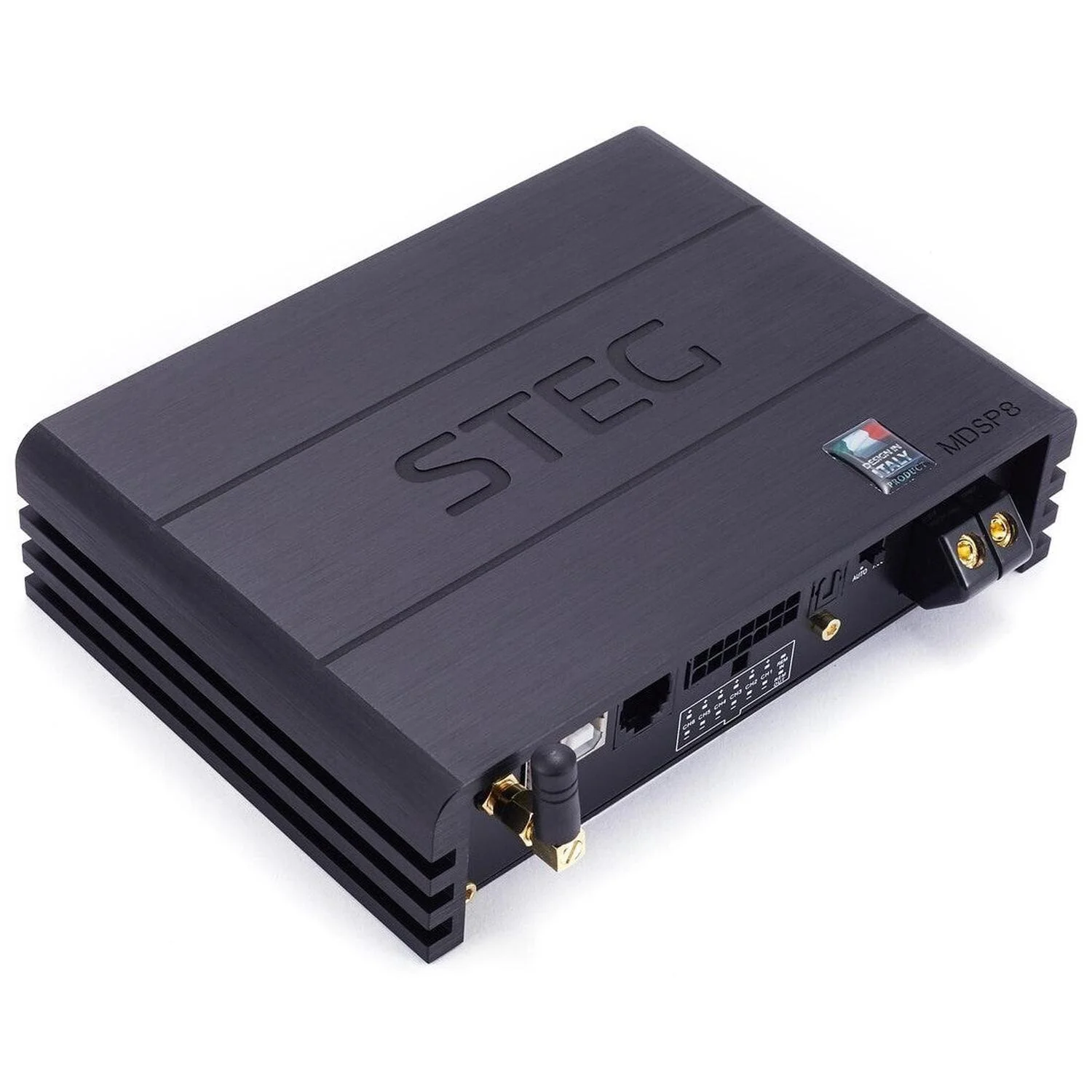

Steg MDSP-8 – 6 Channel DSP Amplifier with 8-Channel DSP Processing
The Steg MDSP-8 is a compact yet powerful 6-channel DSP amplifier designed to deliver outstanding flexibility and precision for high-performance car audio systems. Equipped with an 8-channel DSP, Bluetooth audio streaming, and OTG support, it’s perfectly suited for advanced and complex sound setups.
With a power output of 6 x 50 W RMS at 4 ohms, the MDSP-8 provides clean, stable performance. It features six high-level inputs (8–32 V) with an integrated anti-error circuit, ensuring safe and reliable connection with factory head units. The flexible input mixer and routing system allows precise customization of each channel, supported by a 5-band parametric equalizer, multi-mode crossovers, and fine phase and time alignment controls for complete tuning freedom.
Thanks to its built-in Bluetooth module, wireless music playback is effortless and stable. The smart mixer automatically optimizes signal management for seamless performance. Despite its compact size, the MDSP-8 offers wide expandability with optional accessories such as the DRC remote controller and DCR-S sub-level controller, giving users greater control and convenience.
Technical Specifications
-
Configuration: 6-channel DSP amplifier with 8-channel DSP, Bluetooth & OTG support
-
Power Output: 6 × 50 W RMS @ 4Ω (non-bridgeable)
-
High-Level Input: 6 channels (8–32 V) with anti-error circuit
-
Input Mixer: Fully flexible routing options
-
RCA Input: 2 channels
-
Bluetooth Module: Built-in, with smart mixer for streaming
-
Pre-Out: 8 channels (1.5 V)
-
Equalizer: 5-band parametric EQ with low-/high-shelf and amplification controls
-
Crossovers: Full Range / HP / LP / BP / AP on each channel
-
Filter Slope: 6–48 dB/oct (6-step increments)
-
Crossover Frequency: 20 Hz–20 kHz (Butterworth, Linkwitz, Bessel options)
-
Phase Control: 0° / 180° or adjustable 0–360° in 6° steps
-
Time Alignment: 0–20 ms (0.02 ms increments)
-
Level Meters: Input/output indicators per channel
-
Operating Voltage: 9–18 V
-
Optional Accessories: DRC Controller, DCR-S Sub-Level Controller
-
Dimensions: 174 × 120 × 42 mm
