Audison AP 1P Tweeter – Precision High-Frequency Performance with Total Install Flexibility
The Audison AP 1P is a premium component tweeter engineered to deliver clean, detailed, and dynamic high frequencies with exceptional installation versatility. Designed for both OEM integration and custom audio builds, this tweeter combines advanced materials, powerful motor design, and Audison’s exclusive AIF (Any Install Faceplate) technology—making it one of the most installer-friendly tweeters in its class.

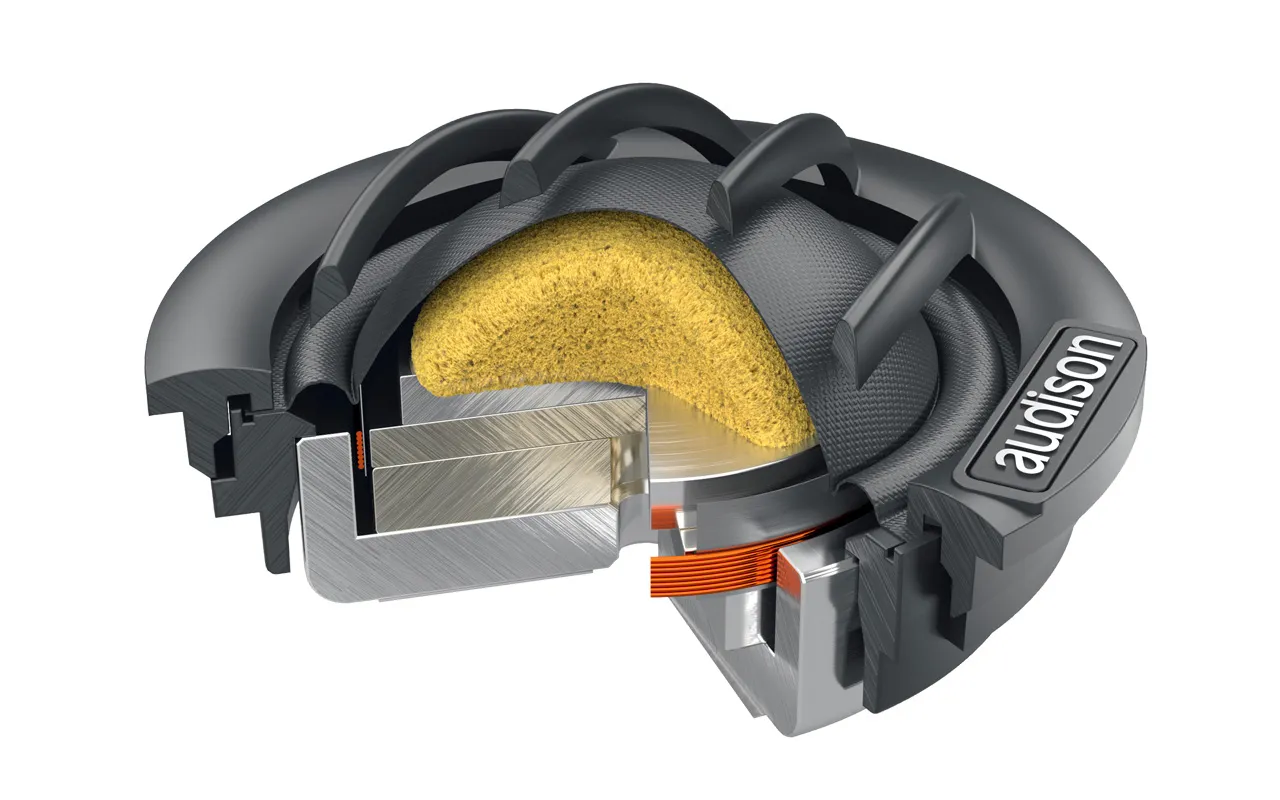

At its core, the AP 1P features a 29 mm Tetolon fibre dome, known for its smooth, natural sound character and excellent damping properties. This dome is driven by a 1-inch (25 mm) CCAW voice coil and a double neodymium magnet motor, ensuring fast transient response, extended high-frequency reproduction, and impressive efficiency even at higher listening levels.
With a sensitivity of 92 dB and an extended frequency response from 1.2 kHz up to 25 kHz, the AP 1P delivers articulate highs that blend seamlessly with midrange drivers. Power handling reaches up to 150 W peak, making it suitable for both factory-upgrade systems and amplified setups.
To ensure optimal performance and easy tuning, the tweeter is paired with the APCX P 2T crossover, featuring a 12 dB/oct high-pass filter at 2.5 kHz and a selectable tweeter level adjustment (0 / +3 dB) to fine-tune output according to vehicle acoustics and listener preference.
Key Features & Benefits
- 29 mm Tetolon Fibre Dome
Smooth, natural highs with controlled resonance and excellent detail. - Double Neodymium Magnet Motor
Strong magnetic flux for extended high frequencies and superior dynamics. - 1” CCAW Voice Coil
Lightweight yet robust, ensuring fast response and high efficiency. - Audison AIF Technology (Any Install Faceplate)

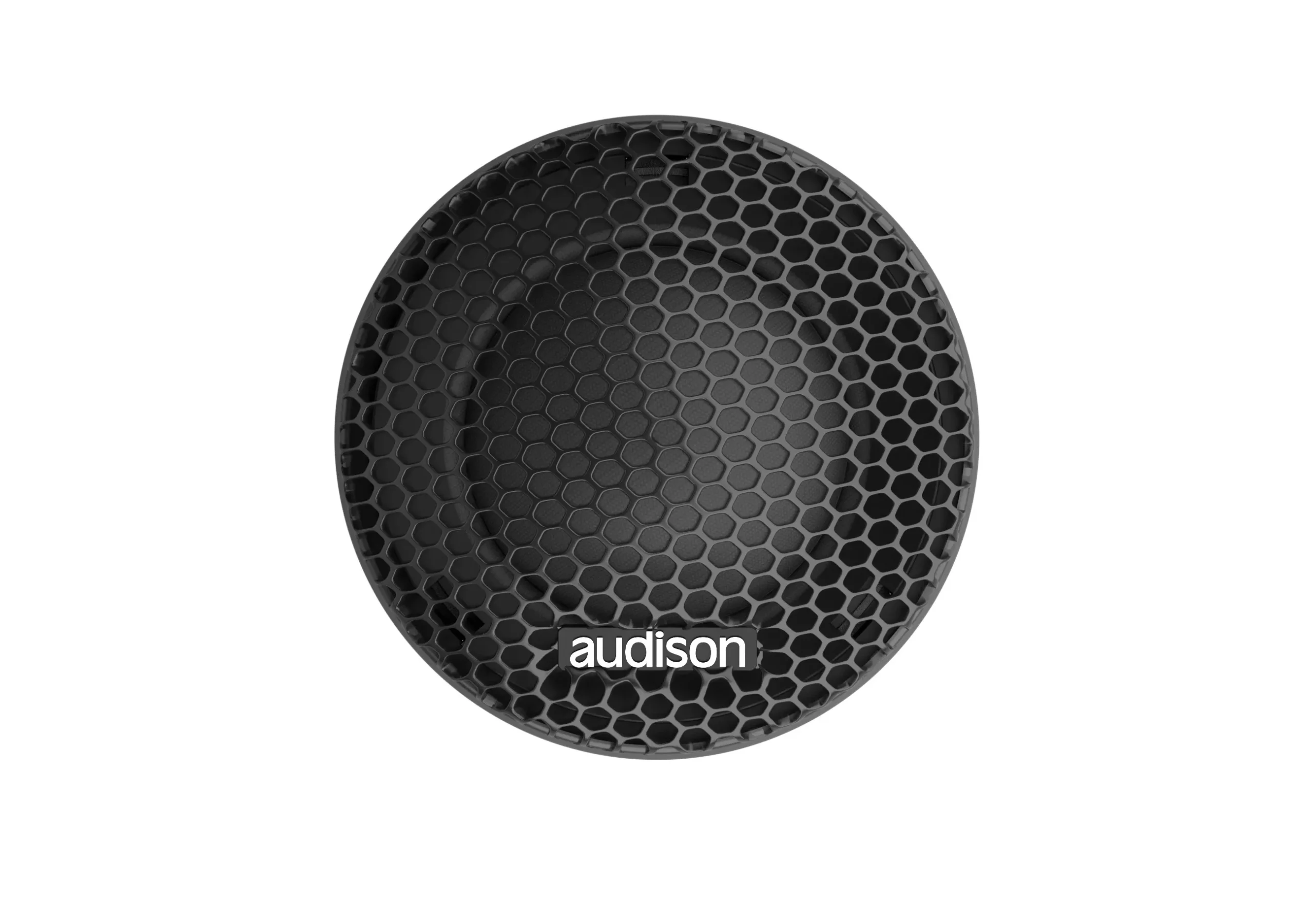

Three interchangeable faceplates for maximum application flexibility:- OEM Faceplate – Perfect for factory-style placement
- Mesh Grille – Ideal balance of protection and performance for A-pillar installs
- Spoke Grille – Maximum acoustic transparency for high-end A-pillar installations

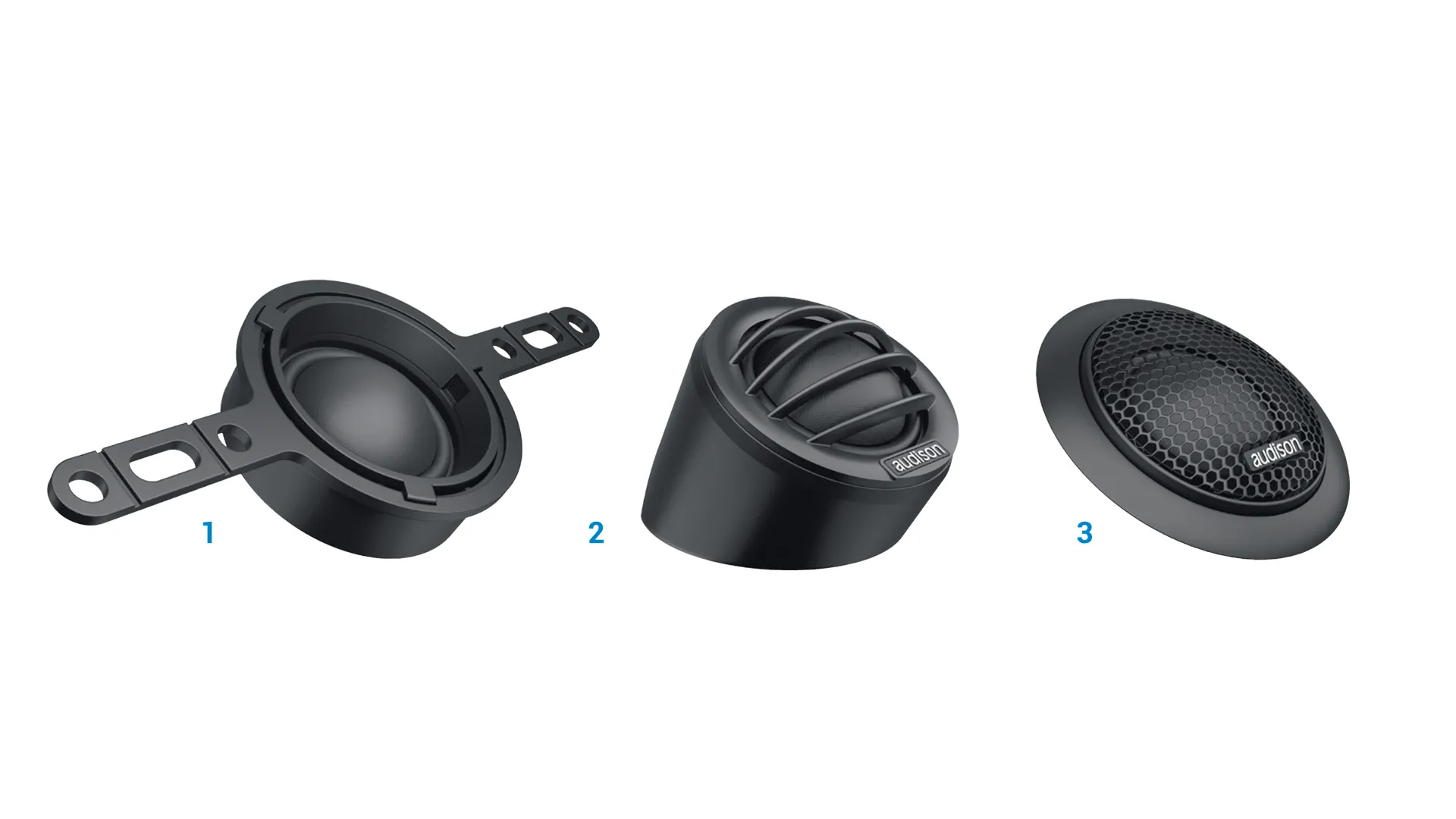

- Complete Mounting Accessories Included
Designed to reduce installation time and adapt to any scenario:- Watch band mount
- Double-angle cup
- Flush mounting ring
- Metal mounting spring
Technical Specifications
- Nominal Diameter: 29 mm (1.14 in)
- Impedance: 8 Ohm
- Power Handling (Peak): 150 W
- Sensitivity: 92 dB
- Frequency Response: 1.2 kHz – 25 kHz
- Voice Coil Diameter: 25 mm (0.98 in)
- Magnet Material: Neodymium
- Dome Material: Tetolon Fibre
- Crossover: APCX P 2T
- Crossover Type: High-Pass 12 dB/oct @ 2.5 kHz
- Tweeter Level Adjustment: 0 / +3 dB
Audison AP 1P is the ideal choice for enthusiasts and professionals seeking refined high-frequency performance, seamless OEM integration, and uncompromising installation flexibility—delivering premium sound quality in every application scenario.
